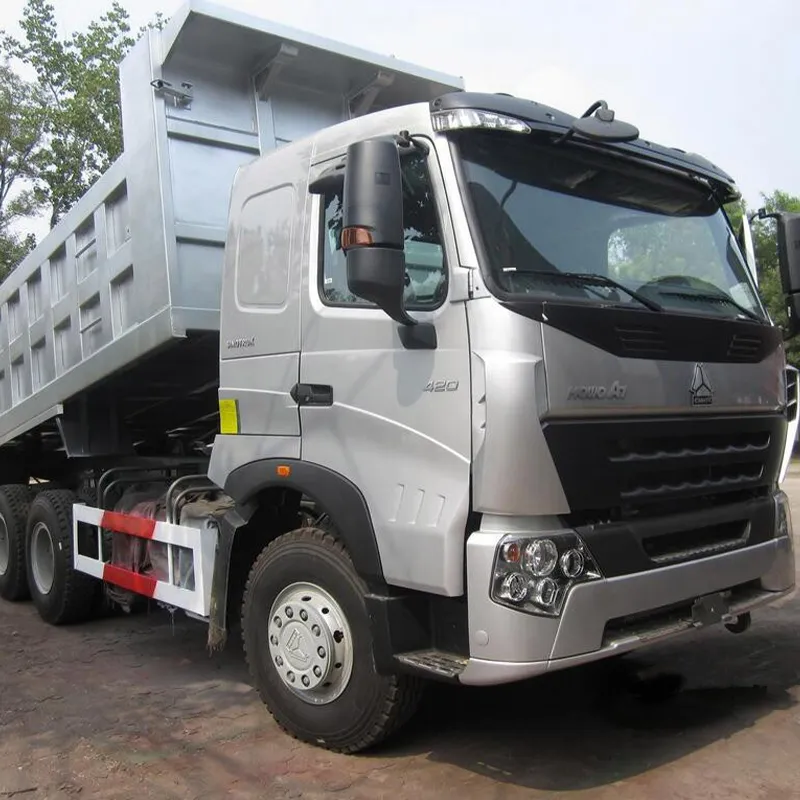

Howo A7 Dump Truck Specs: Built for Extreme Hauling
Engineering teams and fleet owners demand verified Howo A7 Dump Truck Specs before investing in heavy tippers. The Sinotruk Howo A7 platform delivers proven performance in mines, infrastructure, and aggregate transport. To sustain this level of durability, genuine Sinotruk howo parts ensure every component—from the EVB exhaust brake to the HC16 hub-reduction axle—operates at peak efficiency. The Howo A7 Dump Truck Specs outlined below represent decades of heavy-duty iteration.
Howo A7 Dump Truck Specs: Powertrain & Configuration
The Howo A7 Dump Truck Specs start with the robust 8×4 or 6×4 driving configuration, both rated for extreme gross vehicle weights. The 8×4 model accepts up to 30 CBM bodies, while the 6×4 remains the favorite for agile mining cycles. All variants share the legendary HW19710 transmission—10 forward and 2 reverse gears, equipped with a PTO port for hydraulic lift systems.
Engine options include the 371 HP WD615.47 (9.726 L) and the 420 HP D12.42 (11.596 L), both meeting Euro 2 standards with direct injection and turbo-intercooling. Torque peaks at 1500 N.m, allowing the Howo A7 to climb 35° slopes with 25-ton payloads. These Howo A7 Dump Truck Specs guarantee low-end grunt where traction is scarce.
Howo A7 Dump Truck Specs – Complete Parameter Sheet
| System | Specification | Details / Model |
|---|---|---|
| Chassis / Drive | 6×4 or 8×4 | ZZ3257N3847N1 / ZZ3257V3647N1 |
| Engine (Std) | 371 HP WD615.47 | 9.726L, 1500N.m@1100-1600, EVB |
| Engine (Option) | 420 HP D12.42 | 11.596L, Euro 2, intercooled |
| Transmission | HW19710 | 10F+2R, with PTO, ratios 14.28–1.00 |
| Front Axle | HF9 | 9,000 kg capacity, double T-section |
| Rear Axle | HC16 | 16,000 kg x 2, hub reduction, diff lock, ratio 5.73 |
| Cabin | A7-W / A7-P | Sleeper, air suspension seat, A/C, stabilizer |
| Cargo Volume | 16–30 CBM | 5400–7800 mm length, floor 8-10mm, side 6-8mm |
| Gross Vehicle Weight | 25,000 kg (6×4) | Up to 31,000 kg (8×4) |
| Fuel Tank | 300 L | Standard steel, optional 400L for long-haul |
| Tires | 12.00R20 | Radial, 10 pcs + 1 spare |
| Brake System | Dual-circuit air | Exhaust brake, spring energy parking |
| Steering | ZF8118 | Hydraulic power assist, LHD/RHD optional |
Howo A7 Dump Truck Specs – 371HP & 420HP Performance
Under the A7-W cab lies a powerplant engineered for continuous peak torque. The WD615.47 (371HP) generates 1500 N.m from 1100 rpm, while the D12.42 lifts output to 420HP. Both engines use wet liners and individual cylinder heads—simplifying maintenance when combined with genuine Sinotruk howo parts. The Howo A7 Dump Truck Specs also include an engine exhaust brake (EVB) that develops 160 kW retarding force, drastically reducing service brake wear on downhill hauls.
Transmission matching is critical. The HW19710 gearbox features multi-mesh constant mesh, with a low first gear ratio of 14.28:1 for breakaway traction in loose mud or gravel. Operators confirm these Howo A7 Dump Truck Specs reduce cycle times by 18% compared to previous generation tippers.
Howo A7 Dump Truck Specs: Reinforced Chassis & Suspension
The U-profile ladder frame measures 300x80x8 mm, manufactured from high-strength RL590 steel. All cross members are cold-riveted, and the subframe is fully reinforced to withstand impact loading during shovel operations. Howo A7 Dump Truck Specs list front suspension as 10-leaf semi-elliptic with double-acting shock absorbers and stabilizer; rear bogie uses 12-leaf springs plus a bogie balance beam. This layout guarantees 18° axle articulation, keeping all wheels on uneven terrain.
The HC16 rear axle set features pressed housing with full-floating design, inter-axle and cross-axle differential locks. Ratio 5.73 optimizes the balance between startability and top speed (85 km/h loaded). Such Howo A7 Dump Truck Specs enable 25-ton payloads even in laterite or sand.
Howo A7 Dump Truck Specs – Vocational Applications
Mining & Quarry
6×4 A7 with 20 CBM body, HC16 axles, and 371HP hauls 50 t/d of granite overburden.
Urban Construction
8×4 version, 30 CBM, 8mm floor, ideal for subway excavation and high-rise foundation.
Infrastructure
Road building, dam filling: A7-P cab, 420HP, 11.596L, 5600mm wheelbase, extreme durability.
Howo A7 Dump Truck Specs: Operator-Centric Cabin
The A7-W cab is 30% more torsion-resistant than previous HW76. It integrates four-point fully floating suspension with transverse stabilizer and hydraulic dampers. Drivers benefit from air-suspension seats (with heating/ventilation), adjustable steering column, and integrated VDO cockpit. Noise levels stay below 78 dB(A) at 85 km/h—class-leading for vocational trucks. These Howo A7 Dump Truck Specs reduce fatigue during 12‑hour shifts, proven in Namibian mine studies.
Optional RHD layouts are available for Zambia, Japan, and Thailand markets without altering chassis integrity. Air conditioning, external sun visor, and dual-arm wipers with three speeds are standard across all Howo A7 Dump Truck Specs levels.
Total Cost of Ownership: Howo A7 Dump Truck Specs
The real value of Howo A7 Dump Truck Specs emerges through parts commonality. The WD615 engine series shares 85% components with Sinotruk’s 8‑L and 10‑L families. By using only genuine Sinotruk howo parts, fleet managers extend axle life beyond 800,000 km. The HV5 pneumatic system and WABCO-derived valves are field-serviceable in remote areas. Every Howo A7 Dump Truck Specs parameter—from the 300 L fuel tank to the automatic slack adjusters—is designed for low cost per ton.
Howo A7 Dump Truck Specs: The Verdict
No other medium-heavy dump truck combines the structural reserve and serviceability of the Howo A7 series. Whether configured as 6×4 with 16 CBM body for tight tunnels or 8×4 with 30 CBM for open-pit coal, the Howo A7 Dump Truck Specs remain consistent: HF9/HC16 axles, HW19710 transmission, and the bulletproof WD615/D12 engine line. With over 1.2 million units produced, the A7 platform defines reliability in extreme climates. The continued availability of Sinotruk howo parts across Africa, SE Asia, and Latin America ensures your investment keeps moving material, not waiting for spares. These Howo A7 Dump Truck Specs are not just numbers—they are the baseline for profitability in heavy construction.
