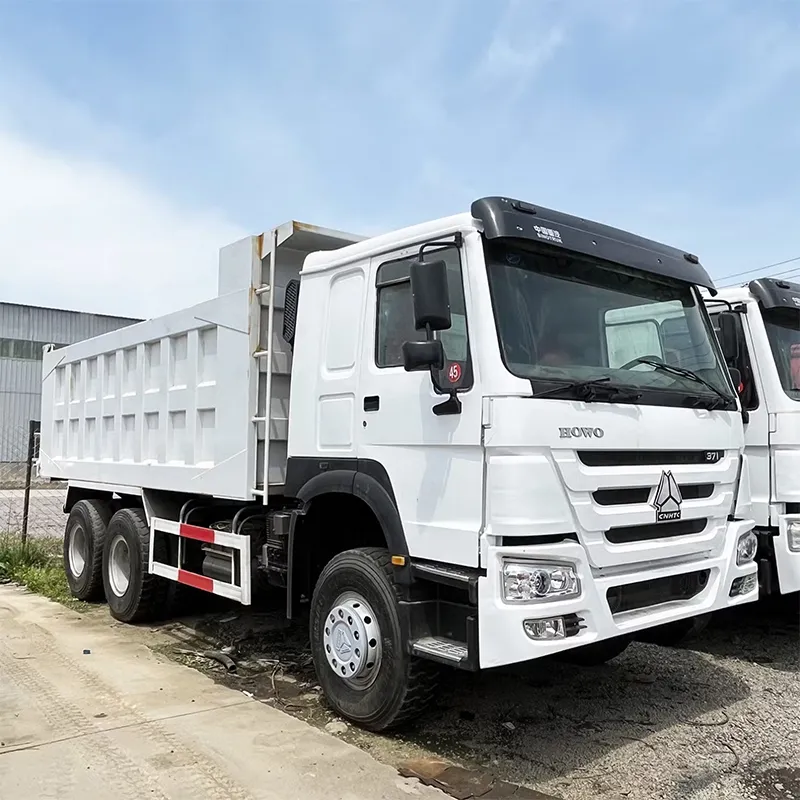

The Howo Dump Truck Dimension is not a one-size-fits-all measurement. Different models are engineered to meet specific operational requirements. For example, the Howo 6×4 standard model with 3825+1350 mm wheelbase is the most popular choice for general construction due to its balance of maneuverability and payload capacity. Its overall length of 8250 mm allows it to navigate typical job site entrances while still carrying up to 25 tons of material. Understanding this Howo Dump Truck Dimension helps project managers allocate space for loading and dumping operations.

For large-scale mining operations, the Howo 8×4 models feature extended dimensions to accommodate higher payloads. The overall length can exceed 10.8 meters, with cargo bodies up to 8 meters long. This Howo Dump Truck Dimension requires careful planning of haul roads and dumping areas. The wider track (2800 mm in some models) improves stability when carrying 40-ton loads over uneven terrain. Operators must ensure that loading equipment, such as excavators, can reach across the wider body.

Height is another crucial Howo Dump Truck Dimension. Standard cab height is approximately 3150–3500 mm, but this can increase with optional roof-mounted air conditioners or beacons. When operating under overhead conveyors, in tunnels, or under power lines, knowing the exact height is essential for safety. The dumping height (when the body is raised) is also critical – typically ranging from 6500 mm to 7500 mm depending on the model. This Howo Dump Truck Dimension determines compatibility with loading equipment and stockpile heights.

Width is often the limiting factor for road transport. Standard Howo Dump Truck Dimension width is 2500–2550 mm, which is within legal limits for most countries without requiring special permits. However, mining-spec models may be wider (up to 2800 mm) for increased stability, which may require oversize load permits for highway travel. When importing trucks, this Howo Dump Truck Dimension affects shipping container selection – standard 20 ft containers accommodate 4×2 models, while larger models require flat rack or RO-RO shipping.

The relationship between wheelbase and turning radius is a key engineering consideration. The Howo Dump Truck Dimension for wheelbase directly influences how tightly the truck can turn. For example, a 6×4 model with 3825+1350 mm wheelbase has a turning radius of approximately 8.5 meters, while extending the wheelbase to 4325+1350 mm increases the radius to 9.2 meters. This Howo Dump Truck Dimension trade-off must be considered when the truck will operate in confined urban environments versus open highway routes.

Ground clearance is another important Howo Dump Truck Dimension, typically ranging from 280 mm to 350 mm depending on tire size and suspension. Higher ground clearance is essential for off-road use in mines and quarries, preventing undercarriage damage from rocks. The approach angle (typically 20–25 degrees) and departure angle (25–35 degrees) are derived from overall dimensions and affect the truck’s ability to climb ramps and negotiate steep grades without scraping.

When replacing components, maintaining original Howo Dump Truck Dimension is critical. Using genuine sinotruk howo parts ensures that suspension heights, axle positions, and body mounts remain within factory specifications. Aftermarket modifications that alter dimensions – such as raising the suspension or extending the chassis – can negatively impact stability, braking, and warranty coverage. Always consult Sinotruk specifications before making dimensional changes.

This comprehensive guide to Howo Dump Truck Dimension provides the essential measurements needed for site planning, equipment matching, and transport logistics. Whether you are specifying a new truck or checking compatibility with existing infrastructure, accurate dimensional data ensures safe and efficient operations.

For detailed CAD drawings or specific dimensional queries about Howo Dump Truck Dimension for your application, please use the contact button above. Authorized Sinotruk representatives can provide model-specific dimensional data and technical support.
