Sinotruk Howo Oil Filter, Raised by 114.5
The genuine Sinotruk Howo Oil filter, raised by 114.5 is a critical component for engine cleanliness in heavy-duty trucks. As a leader in reliable Sinotruk Howo Parts, this assembly ensures optimal fluid filtration. The unit features a raised mounting height of 114.5mm for improved clearance. For hydraulic safety standards, refer to ISO 18768-1 guidelines.

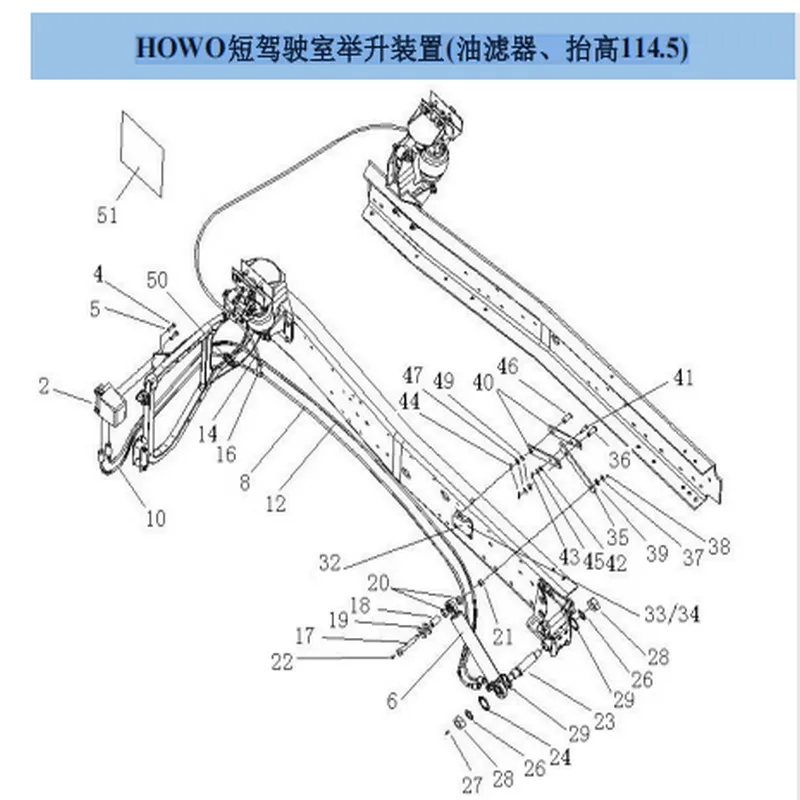

Sinotruk Howo Oil filter, raised by 114.5 – Complete Assembly
Complete Component Guide for Sinotruk Howo Oil Filter, Raised by 114.5
Hydraulic manual oil pump
This hand-operated pump generates hydraulic pressure, featuring a robust cast body and precision-machined piston for reliable operation.
Hex head bolt
High-strength steel bolts provide reliable clamping force and resist loosening under vibration, ensuring all parts remain firmly attached.
Spring washer
These washers maintain tension on fasteners, ensuring long-term reliability even on rough roads.
Cab lift cylinder
This double-acting hydraulic actuator includes built-in safety check valves to prevent accidental lowering during engine access.
Single-bend high-pressure hose 2060
This 2060mm hose features steel wire braid reinforcement, synthetic rubber inner tube, and weather-resistant cover for pressures up to 4,000 PSI.
Single-bend high-pressure hose 1060
The 1060mm hose allows easy routing around chassis components without kinking or abrasion.
Double-bend high-pressure hose 3150
This 3150mm hose features two pre-formed bends for complex routing paths, providing leak-free fluid transfer.
Single-bend hose
A versatile low-pressure hose for oil return lines or breather connections, resisting oil degradation across wide temperatures.
Ferrule-type three-way union
This union distributes hydraulic fluid with a leak-free ferrule-type connection even under high pressure.
Cab tilt cylinder support shaft I
This hardened steel pivot shaft is precision-ground to exact tolerances for smooth cylinder articulation.
Bush
Replaceable bronze bushings reduce friction between moving parts, providing low-maintenance operation.
Large washer
Large washers distribute clamping load over a wider area, preventing damage to soft materials.
Self-locking nut
Nylon insert nuts resist loosening from vibration, eliminating the need for separate lock washers.
Grease fitting assembly
Recessed grease nipples with dust caps allow easy lubrication while keeping contaminants out.
Cab tilt cylinder support shaft
A secondary case-hardened alloy steel shaft that withstands repeated loading cycles without deformation.
Large spacer
This large diameter spacer maintains correct positioning with flat, parallel surfaces for accurate alignment.
Flat washer
Flat washers provide smooth bearing surfaces under bolt heads, protecting underlying material during tightening.
Locknut
Double nuts or deformed thread locknuts provide vibration-resistant fastening where standard self-locking nuts cannot be used.
Washer
General-purpose flat washers serve as spacers or load distributors with precisely controlled inner and outer diameters.
Limit strap bracket
This forged steel bracket anchors the safety limit strap, preventing over-extension of the tilt cylinder.
Upper strut
This heavy-gauge steel structural strut adds rigidity with precision-located mounting holes for easy installation.
Pin (h11)
This precision-ground pivot shaft features h11 tolerance for a snug fit without binding, allowing smooth rotation.
Cotter pin
Split cotter pins secure castle nuts or prevent pins from backing out, bent after installation for a positive mechanical lock.
Wave spring washer
This wavy washer provides spring-loaded axial preload where a standard spring washer cannot fit.
Lower strut
Paired with the upper strut, this component creates a rigid box section that resists twisting forces during cab tilting.
Saddle spring washer
This saddle-shaped curved washer provides high spring force in a thin profile where space is limited.
Plastic tie wrap
Self-locking nylon straps organize and secure hydraulic hoses and wiring, resisting oil, heat, and UV exposure.
Instruction plate
This plate provides critical safety and operating information, reminding operators of proper lifting procedures.
Technical Parameters of Sinotruk Howo Oil Filter, Raised by 114.5
| Number of part | Designation |
|---|---|
| WG9719826001 | Hydraulic manual oil pump |
| Q150B1020 | Hex head bolt |
| Q40310 | Spring washer |
| WG9719820002 | Cab lift cylinder |
| WG9719820201 | Single-bend high-pressure hose 2060 |
| WG9719820202 | Single-bend high-pressure hose 1060 |
| WG9719820203 | Double-bend high-pressure hose 3150 |
| WG9719820204 | Single-bend hose |
| 190003559482 | Ferrule-type three-way union |
| AZ9719820008 | Cab tilt cylinder support shaft I |
| AZ9719820009 | Bush |
| Q40216 | Large washer |
| AZ9719820012 | Bush |
| 190003888459 | Self-locking nut |
| AZ9003963001 | Grease fitting assembly |
| AZ9719820015 | Cab tilt cylinder support shaft |
| WG9719820011 | Large spacer |
| Q40124 | Flat washer |
| Q33424 | Locknut |
| WG9719820013 | Washer |
| AZ9719820030 | Limit strap bracket |
| Q151C1235 | Hex head bolt |
| 190003888457 | Self-locking nut |
| AZ9719820021 | Upper strut |
| Q5101428 | Pin (h11) |
| Q40114 | Flat washer |
| Q5004028 | Cotter pin |
| Q41814 | Wave spring washer |
| AZ9719820022 | Lower strut |
| 190003903452 | Pin |
| Q41710 | Saddle spring washer |
| Q5003216 | Cotter pin |
| Q40112 | Flat washer |
| 190003171356 | Plastic tie wrap |
| WG9719820098 | Instruction plate |
Why Choose Our Sinotruk Howo Oil Filter, Raised by 114.5?
Our hydraulic system components meet ISO quality standards. Every part, from the pump to the cylinder, is tested for durability. Our manufacturing follows SAE J2056 hydraulic hose guidelines.
We stock genuine assemblies with full traceability. Our supply chain ensures fast delivery of critical parts like hoses, fittings, and seals, minimizing vehicle downtime for fleet operators.
Direct sourcing allows competitive pricing on all hydraulic components. You get original quality from the pump to the smallest cotter pin without paying dealership premiums.
Our technical team provides expert support for identifying correct configurations. We assist with hose routing, torque specifications, and component cross-referencing.
For additional technical information, please refer to the ISO international standards for hydraulic systems and components.
